Xinder-tech UVL-PA Passenger Car Wheelchair Lift New Product Launched
UVL-PA wheelchair lifts can help wheelchair passengers get on and off buses, especially for tourist buses with single-door middle doors. Installed in the stepping area of ??the bus, it does not occupy space inside the bus when not in use, and will not affect other passengers getting on and off the bus normally. The lift is controlled by a handheld remote control switch, and there are light and sound alarms during operation. When the vehicle is underpowered or the electrical appliances fail, the lift can be operated manually in an emergency. The anti-slip platform is equipped with mechanical automatic front and rear baffles to ensure users' safety while lifting and lowering the platform. The lift has a maximum load of 350kg and a maximum lifting height of 1297mm. It has passed the EU CE certification and EMARK certification.
Product Display
Platform extended Platform raised/lowered Platform retracted
Technical Parameters
| Rated voltage | 24V |
| Operating current | Horizontal/down ≤3A, lift ≤20A |
| Rated Power | 500W |
| Rated load | 300kg |
| Run time | Rising 85±10mm/s; falling 65±10mm/s; horizontal extension 65±5mm/s; horizontal retraction 50±5mm/s |
| Weight | Mechanism ≤225KG, hydraulic power unit ≤25KG, whole machine deviation 0.5% |
Features
| Good durability: horizontal in and out reciprocating operation times ≥ 10,000 times, lifting operation times ≥ 10,000 times |
| Manual emergency: In the event of a power outage or vehicle failure, the lift can be operated manually |
| Safety lock: After the product is fully retracted, it is equipped with a hydraulic lock hook to prevent the mechanism from being thrown out when the vehicle makes a sharp turn. |
| Circuit protection: When the motor is short-circuited or the power supply is reversed, the product circuit can be protected from damage |
| Safety protection: Equipped with mechanical automatic front and rear baffles and handrails on both sides to prevent accidental sliding and ensure the safety of passengers |
| Sound alarm: Low power consumption during the whole operation will emit a warning sound to alert nearby personnel; |
| Low power consumption: The current in the dormant stage is less than 0.2mA, which reduces battery consumption; |
| Waterproof and dustproof: IP67, and a 500mm water depth wading test is required. The product can operate normally after leaving the water source |

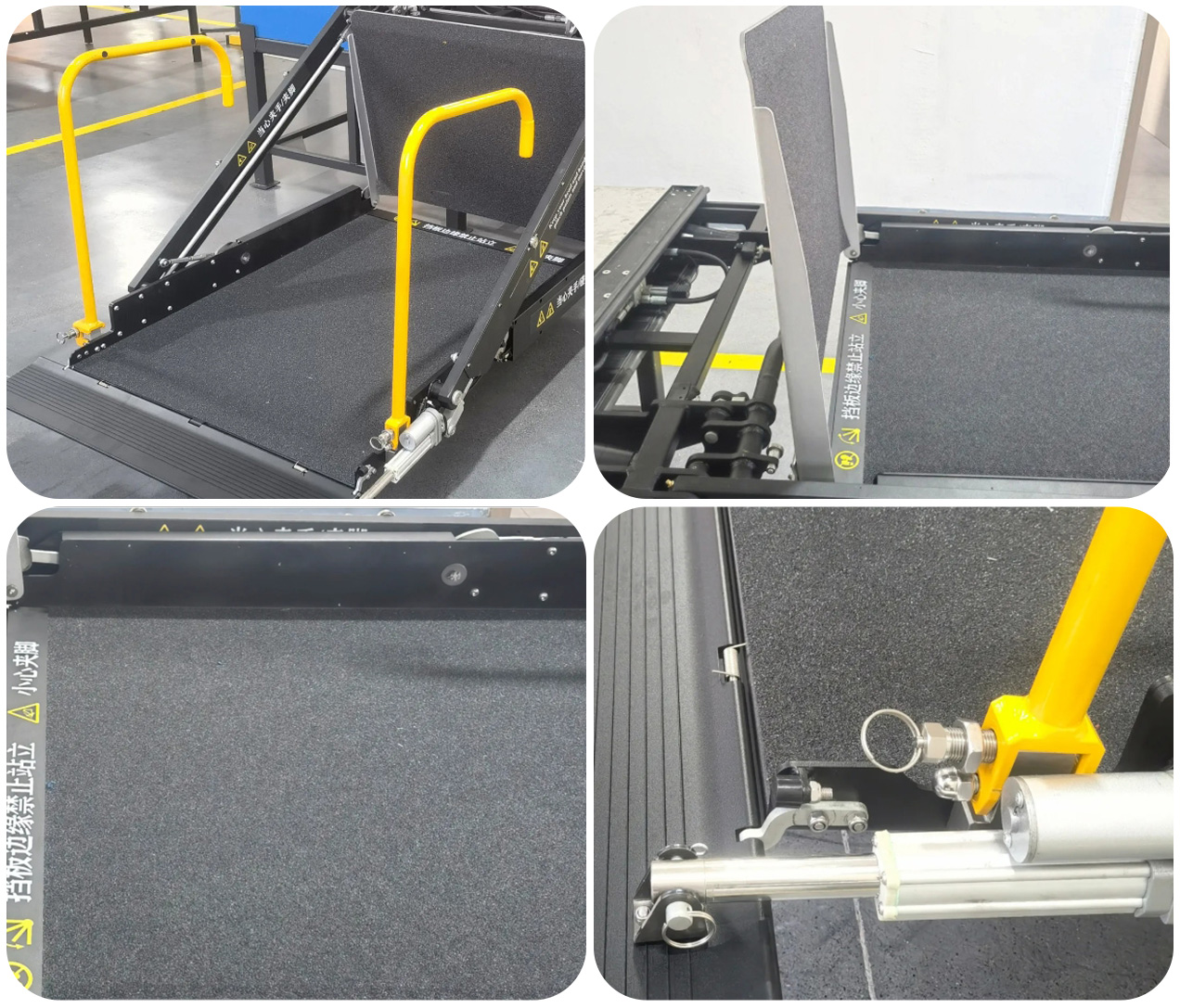

Details
