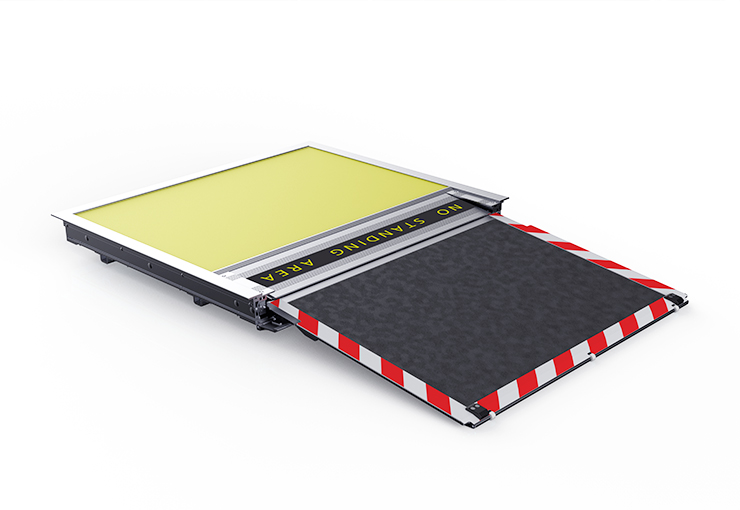

EWR-TD01 Series Electric Wheelchair Ramp
EWR-TD01 Series Electric Wheelchair Ramp
EWR-TD01 Series Electric Wheelchair Ramp
Safety Certification
Safety Certification

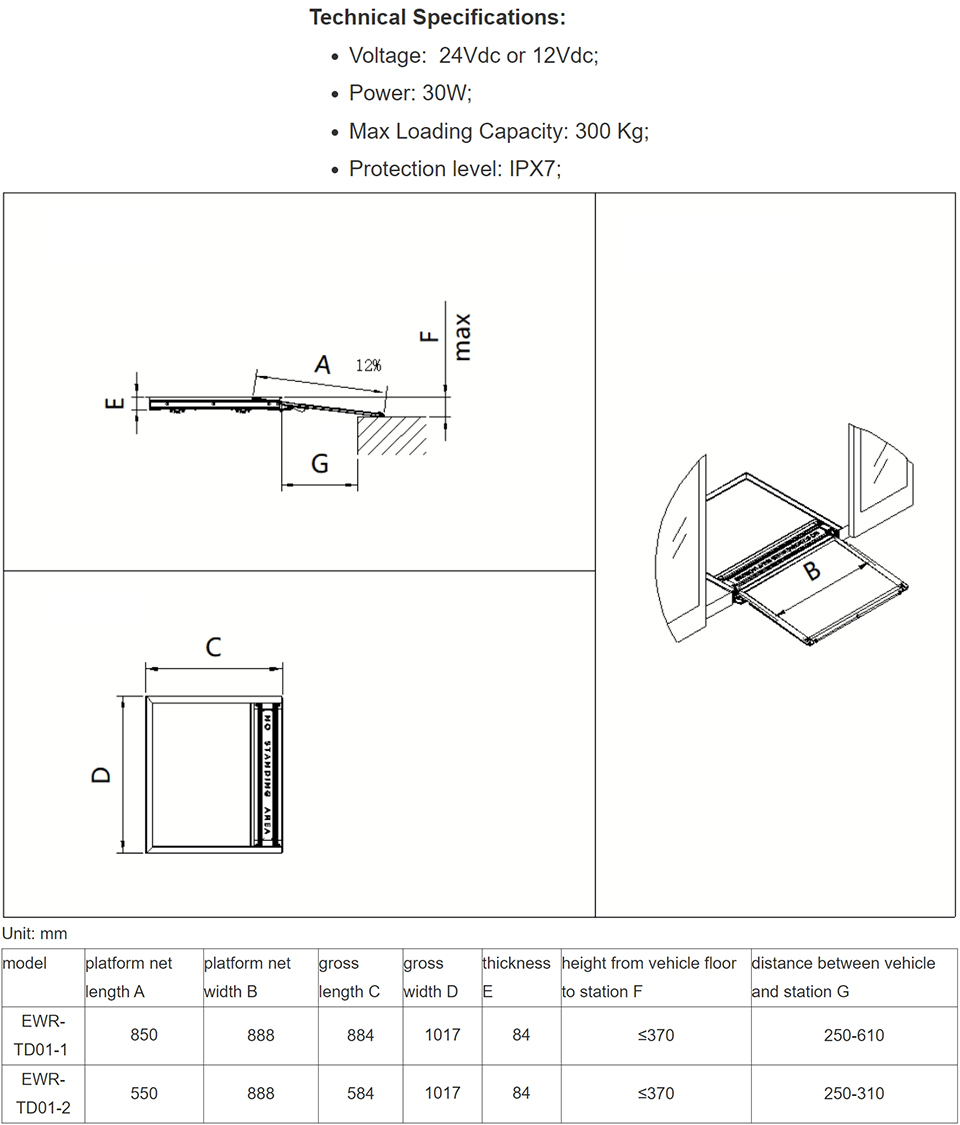

  • EWR-TD series electric wheelchair ramp is designed for city bus and BRT (Bus Rapid Transit) to help wheelchair occupant to enter  vehicle comfortably and easily while seated in a wheelchair.

  • It is installed on bus floor and flat with floor after installed, so it doesn't obstruct view, access and emergency exit.

  • It is driven by motor and controlled by switch.

  • Main material is aluminum, which has high corrosion resistance.

Features


  • doesn't obstruct view, access and emergency exit when not in use;

  • warning sound during working;

  • manual backup function;

  • door interlock function;

  • anti-skip platform;

  • ramp will stop when touch some barrier during extending out (Resistance value between 150N and 300N);

  • optional function of 15kg loading induction;

  • Low quiescent current;

  • Pass test: ECE R10, Vibration resistance;
